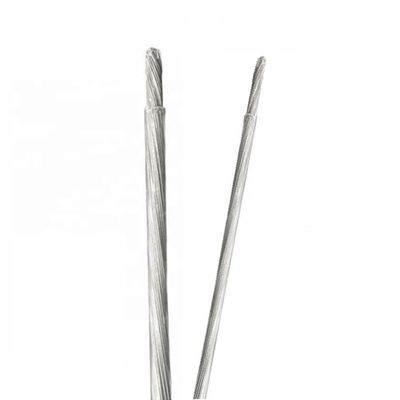

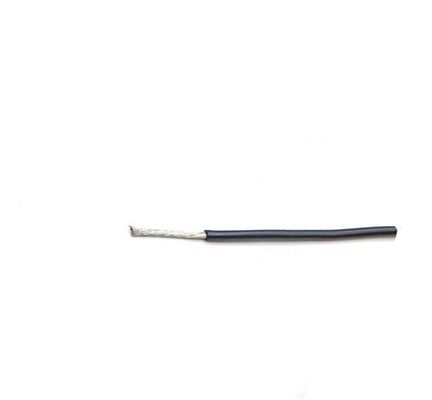

High Quality High Temp Tin Coated 24 Awg FEP Wire
What is FEP Wire
FEP wire is a type of fluoroplastic insulated wire with properties similar to PTFE and PFA, including low friction and chemical non-reactivity.
- Excellent corrosion resistance comparable to PTFE, withstanding exposure to detergents better than PTFE
- Melting point of approximately 200°C, lower than PTFE and PFA
- High dielectric strength with superior electrostatic field conduction
- Outstanding resistance to chemicals, fluids, aging, and ozone
- Tinned copper FEP wires recommended for welding applications
Applications of FEP Wire
- Aviation Wiring
- Aerospace Wiring
- Electronics Wiring
- Medical Wiring
- Appliance Wiring
- Lighting Industry
- Military Applications
- Oil and Gas Industry Applications
- Chemical Industry Applications
Working Conditions
- Insulation: FEP insulated
- Conductor: Solid core or stranded silver plated copper or tinned copper wire
- Shielding: Tinned copper wire weave shielded (optional)
- Temperature range: -65°C to +200°C
- Rated voltage: 1000V, 600V, 250V

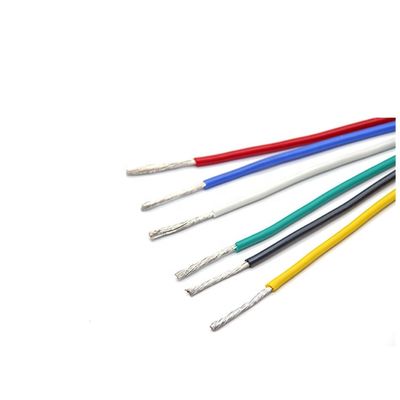

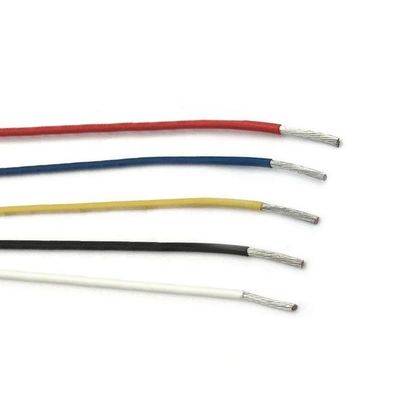

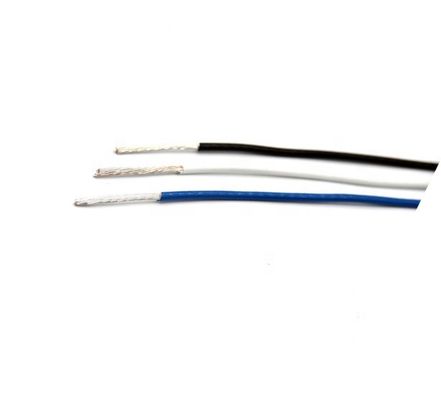

- Color options: 10 basic colors (transparent, black, brown, red, orange, yellow, green, blue, grey, white, violet)
Types and Names
| Model |
Description |
| AF-200 |
Silver coated copper core high temperature FEP wire |
| AF-200-1 |
Tinned copper core FEP insulation wire |
| AFP-200 |
Tinned or silver coated copper core FEP insulated shielding wire |
| AFS-200 |
Tinned or silver coated copper core FEP insulated stranded wire |
| AFSP-200 |
Tinned or silver coated copper FEP insulated stranded shielding wire |
Cable Structures and Specifications
| Wire gauge |
Cross-section area |
Conductor structure |
Max. OD of cable (mm) |
| 36AWG |
0.013mm² |
7/0.05 |
0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG |
0.035mm² |
7/0.08 |
0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG |
0.05mm² |
7/0.10 |
0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG |
0.07mm² |
7/0.12 |
0.9 | 1.1 | 1.4 | 1.65 |
| 26AWG |
0.14mm² |
7/0.16 |
1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG |
0.2mm² |
19/0.12 |
1.2 | 1.4 | 1.75 | 1.98 |
| 22AWG |
0.35/0.40mm² |
19/0.16 |
1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG |
0.5mm² |
19/0.18 |
1.6 | 1.8 | 2.2 | 2.4 |
| 18AWG |
1mm² |
19/0.26 |
2 | 2.2 | 2.6 | 2.9 |
| 16AWG |
1.2mm² |
19/0.28 |
2.2 | 2.4 | 2.8 | 3.1 |
| 14AWG |
2mm² |
19/0.37 |
2.7 | 2.9 | 3.4 | 3.6 |
| 12AWG |
3mm² |
37/0.32 |
3.6 | 3.8 | 4.4 | 4.6 |
| 10AWG |
5mm² |
37/0.41 |
4.5 | 4.7 | 5.3 | 5.6 |
| 8AWG |
8mm² |
133/0.28 |
6 | 6.5 | 6.8 | 7.3 |
Note: Specifications and core numbers can be customized beyond the above regulations.
Company Information
Factory
Shenzhou Special Cable is a reputed manufacturer of military and consumer cables. Our main products include:
- High temperature wires: PTFE wire, ETFE wire, PFA wire, FEP wire
- Robot cable, drag chain cable, PUR cable, TPU cable
- Hook up wire, electronic wire
- Control cable, power cable
Team
To meet customer demand, we have:
- Advanced R&D staff
- Professional transport team
- High-quality engineering installation team
- Professional technicians group
- International sales department (6 persons)
- Domestic sales (15 persons)
- QC team
Workshop
- Production lines: 9 lines
- Monthly production capacity: 90,000m
- Production workers: about 250 persons
- Annual production capacity: RMB 20 million
- Advanced electrical, chemical and mechanical properties test equipment
Warehouse
- 600+ square meters finished product warehouse
- Self-produced cable materials:
- Low smoke zero halogen compounds
- XLPE compound
- Soft PVC compound for cable insulation or sheath
Product Test
We focus on quality. Over the years, our company seriously carries out its responsibility for product quality, guaranteeing repair, replacement and return for products with quality problems during manufacture, and compensating for direct economic loss caused by quality problems.
Our Customers
In the past years, we participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, Power-Gen India. With more than 20 years experience in cable production, we hope our profession and high quality service will bring you success and a satisfying purchasing experience.
Why Choose Us
Awards and Merits
We are a stable wire and cable supplier for China's aerospace and military sectors. Customer satisfaction is our primary aim.
| No. |
Item |
Faulty Products |
Our Products |
| 1 |
Length |
Insufficient length |
Sufficient |
| 2 |
Wire drawing |
Thick at both ends and thin in the middle |
Consistent from beginning to end |
| 3 |
Conductor |
Copper clad aluminum, Copper clad brass |
99.999% pure copper |
| 4 |
Insulation |
Recycled compound |
Virgin compound |
If you want to know how to identify quality differences, welcome
click here.
Our Service
- Free technical consultation service before, during, and after sales
- Free sample and design services
- Free monitoring and detection services during manufacture
- 100% free insurance for internal transportation
- OEM & ODM welcome
- Small orders accepted
Packing & Shipping
Packaging options for High Quality High Temp Tin Coated 24 awg FEP Wire:

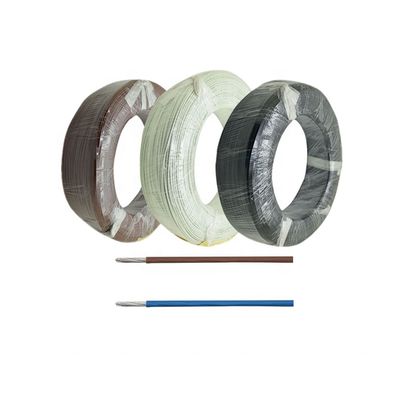

- Polyethylene film winding in roll with non-woven bag or carton box
- Packing in carton box with plastic tray
- Wooden drums, fumigated wooden drums, wooden iron drums
We can supply fumigation package and certificate. Shipping by air, train, express or upon clients' demands.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compound. The company is located in Hunan Province, China.
Q: What is your company's strengths?
A: We are a stable wire and cable supplier for China's aerospace and military sectors, with 21 years experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive offers for global customers.
Q: How do you guarantee your product quality?
A: Quality is our priority. We implement strict quality control from design through materials procurement, manufacturing, semi-finished product testing, and finished product inspection to ensure product quality.
Q: What's the warranty of your products?
A: We provide 1 year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
