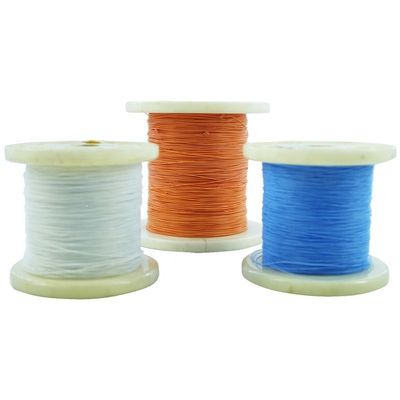

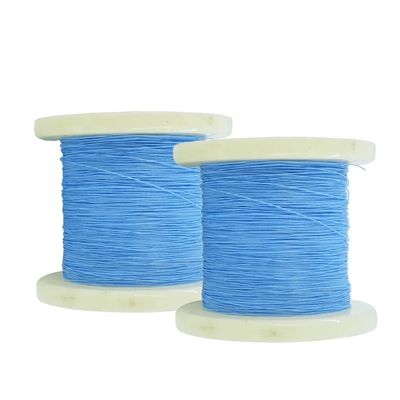

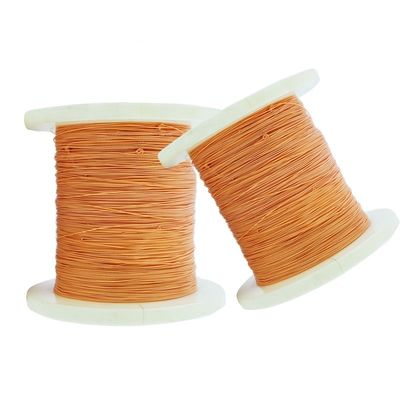

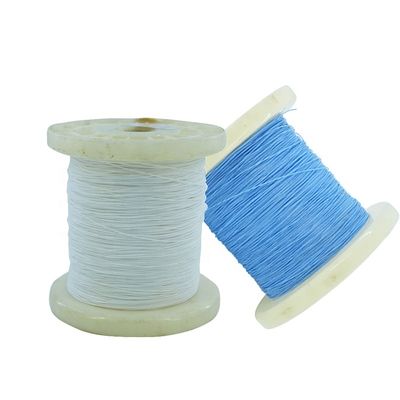

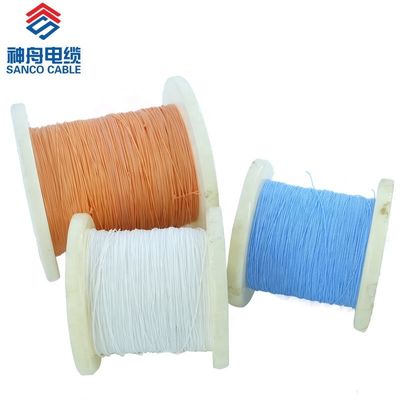

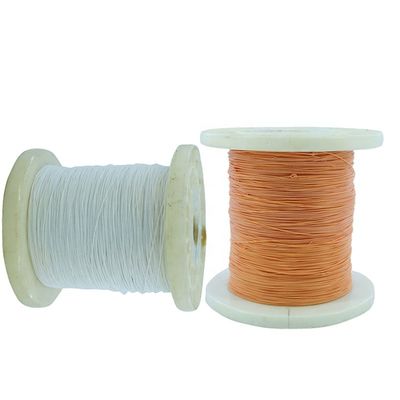

600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design

500
MOQ
600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Material do condutor: Cobre
Material de isolamento: Ptfe
Tensão nominal: 600 V ou Abaixo
Tipo de condutor: Encalhado ou contínuo
Corte transversal: 0,05-3mm2
Temperatura de trabalho: -60℃~+250℃
Opções de cores: Branco, azul, vermelho, preto, amarelo, verde, transparente, amarelo/verde
Núcleo de núcleo: Núcleo único ou vários núcleos
Espessura de isolamento: 0,3-0,68mm
Diâmetro externo: 0,9-3,6 mm
Resistência da C.C.: 6.8-383Ω/km
Construção do condutor: Preso (por exemplo, 7/0.10, 19/0,16)
Tipo de isolamento: PTFE, FEP, PFA
Temperatura nominal: -80 ~+250ºC
Opções de condutor: Cobre banhado a prata, cobre enlatado, cobre nua
Destacar:

600V Rated PTFE Insulated Wire

,

Copper Conductor High-Voltage Lead Wire

,

Stranded PTFE Cable
Informação básica
Lugar de origem: Hunan, China
Marca: Sanco Cable
Número do modelo: AFR-250
Condições de Pagamento e Envio
Descrição de produto
PTFE Insulated High-Voltage Lead Wire
250°C PTFE Insulated High-Voltage Lead Wire
What is PTFE Wire?
  • PTFE wire is an electrical wire coated with polytetrafluoroethylene (PTFE)
  • PTFE offers excellent resistance to high temperatures, chemicals, and electrical stress
  • Ideal for high-performance applications in aerospace, defense, and medical equipment
  • Suitable for harsh environments where other wires would fail
  • Features excellent flexibility and low friction properties for easy installation
Product Features
Excellent corrosion resistance
Oil, acid, alkali, and oxidant resistant
Superior electrical insulation capability
High voltage and moisture resistance
Flame-retardant and anti-aging
Long service life
Cable Specifications
Conductor Materials Silver Plated Copper, Tinned Plated Copper, Bare Copper
Conductor Type Stranded or Solid
Insulation PTFE, FEP, PFA Insulated
Number Core Single Core or Multiple Cores
Size 0.05~3mm²
Rated Voltage 600V or Below
Rated Temperature -80°C to +250°C
Color White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green
600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 0 600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 1
Types and Names
Type Name
AF-200 Silver plated copper wire conductor high temperature FEP insulated wire
AF-200-1 Tinned copper wire conductor high temperature FEP insulated wire
AFP-200 Tinned copper wire or silver plated copper wire core FEP insulated shielding wire
AFS-200 Tinned copper wire or silver plated copper wire core FEP insulated stranded cable
AFSP-200 Tinned or silver coated copper FEP insulated stranded shielding cable
AFR-200 Bare Copper wire conductor PTFE film insulated lead wire
AFR-250 Silver plated copper wire conductor PTFE film insulated lead wire
AFP Bare Copper wire conductor PTFE film insulated screen lead wire
AFP-1 Silver plated copper wire conductor PTFE film insulated screen lead wire
AFRP-200 Bare Copper wire conductor PTFE film insulation shield lead wire
AFRP-250 Silver plated wire copper conductor PTFE film insulation shield lead wire
AFRPF-250, AFPF Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire
Cable Structures
Nominal Section (mm²) Conductor Construction (No/mm) Insulation Thickness (mm) Outer Diameter (mm) D.C. conductor resistance at 20°C (Ω/km)
0.05 10/0.08 0.3 0.9 383 | 370
0.06 7/0.10 0.3 0.9 348 | 339
0.08 7/0.12 0.3 0.96 286 | 280
0.1 7/0.14 0.3 1.02 157 | 150
0.12 7/0.15 or 30/0.07 0.3 1.05 152 | 145
0.14 7/0.16 or 19/0.10 0.3 1.08 136 | 130
0.15 30/0.08 0.3 1.1 111 | 105
0.2 7/0.02 or 19/0.12 0.3 1.2 87 | 82
0.35 19/0.16 0.3 1.4 57 | 54
0.5 19/0.18 0.3 1.5 40 | 37.5
0.8 19/0.23 0.32 1.79 24 | 23
1 19/0.26 0.35 2 21 | 20
1.2 19/0.28 0.45 2.3 19 | 18
1.5 19/0.32 0.45 2.5 13 | 12
2 19/0.37 0.45 2.75 10 | 9
2.5 37/0.30 0.55 3.2 8 | 7
3 37/0.32 0.68 3.6 6.8 | 6.4
Note: PTFE Wire core specifications can be customized according to requirements.
600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 2 600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 3 600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 4
Xiangtan Shenzhou Special Cable Co., LTD
We are a stable wire and cable supplier of China's aerospace and military with 21 years experience. Our cable compounds are produced in-house, ensuring superior quality and competitive pricing for global customers.
Main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and more.
We feature advanced production facilities, integrated management systems, and collaborations with universities and research institutes. Custom cable solutions are available to meet specific requirements.
600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 5 600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 6 600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 7 600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 8 600V Rated PTFE Insulated High-Voltage Lead Wire with Copper Conductor and Stranded Design 9
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer specializing in research, development and sales of military and consumer cable wire and cable compound, located in Hunan Province, China.
2. What is your company's strengths?
As a stable supplier to China's aerospace and military sectors for 21 years, we produce our own cable compounds, ensuring superior quality and competitive pricing.
3. How do you guarantee your product quality?
Quality control is prioritized throughout the entire process - from design and materials procurement to manufacturing and final product inspection.
4. What's the warranty of your products?
We provide 1 year complete warranty service. Products with quality issues will be replaced or refunded unconditionally.
5. How can I get the samples?
We can prepare sample orders. Small quantities available in stock may be provided free of charge, with freight costs covered by the customer.
